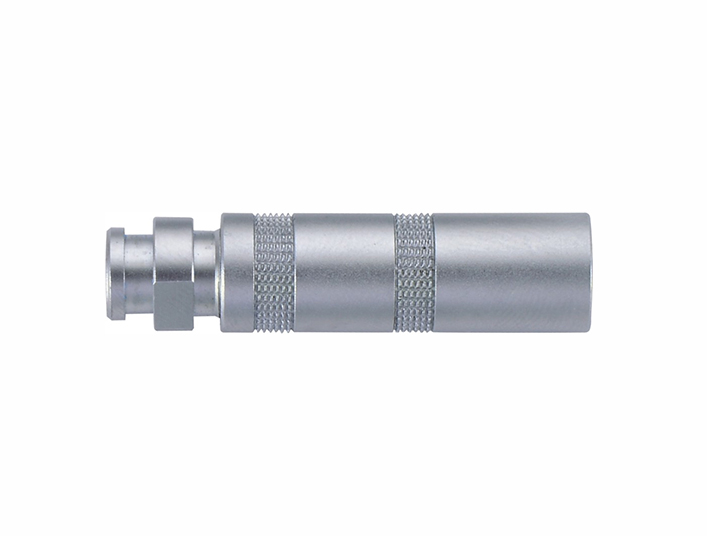

Product Name: DCA hanging socket

Product model:
Product Details:

main features:

Safe push-pull self-locking system;

Multi-core type 2-6 cores;

Solder and printed circuit board cores (straight and curved);

High-density installation saves space;

The stepped (half-month) ferrule is equipped with a male and female core, and the polarity is positioned;

360 degree shielding provides a full range of EMC protection.

electrical performance:

Mechanical life: 3000 times

Vibration: frequency 10-20000Hz, acceleration 147m/s 2 , ≤1um momentary

Impact: acceleration 490m / s 2, ≤ 1um instantaneous

Working temperature: -55 ° C ~ +200 ° C

Relative humidity: 95% at 40 ° C

Protection level: IP50

Salt Fog: 90h (260h for stainless steel 316L)

DCA hanging socket
  • DCA hanging socket
