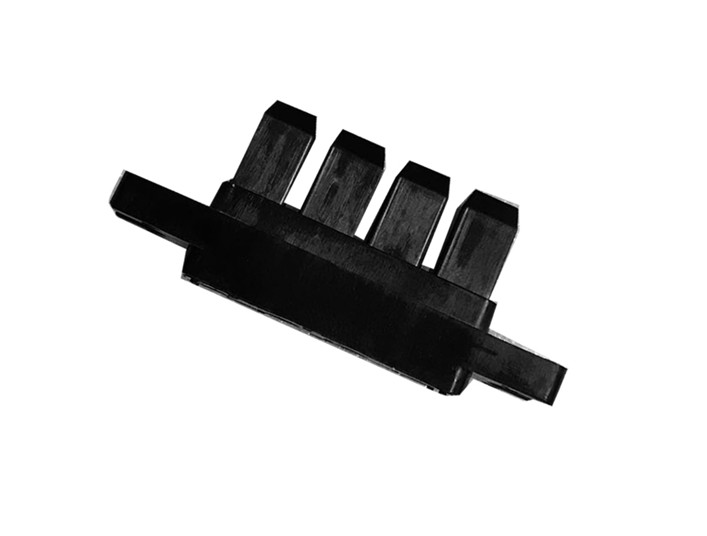

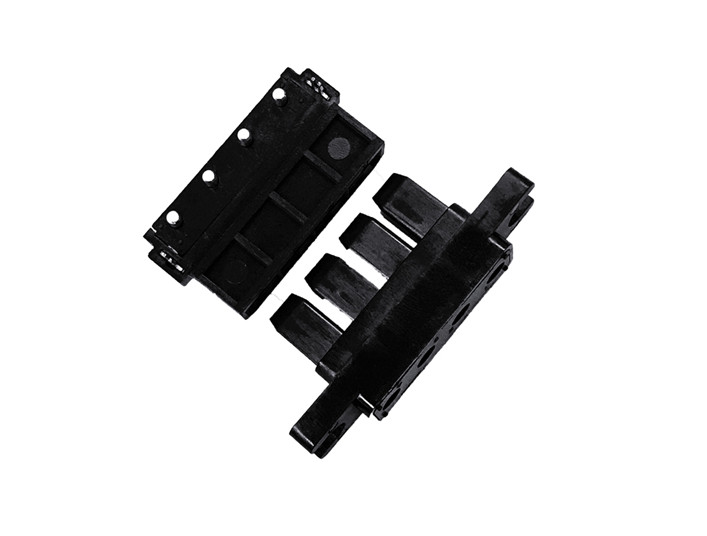

Product Name: 4-pin modular connector plug

Product model: JGT-DJL04-4TJW-1
Product Details:

DJL04 module connector

Power Contacts: 4 Pins

Rated current: 35A

Contact Resistance: 1.0(1.6)mΩ

Pressure resistance: surface silver plated, nickel plated on the bottom

Terminal form: Pin: Crimp pin B. Jack: Crimp Type Y, Plate Type B, Solder Type H

Surface treatment: surface silver plating, nickel plating on the bottom

Material: Pin, Jacket Jacket Brass or Copper Alloy

Crown Spring Bronze

Insulation resistance: ≥1000MΩ

Mechanical life: 1000 times

Shell Material: PBT G30UL94V-0 Black

4-pin modular connector plug
